STRENGTH IN 7 AXES. UNPRECEDENTED FREEDOM.
The first FFF printer meeting MIL-SPEC strength in 7 axes.
Printing Power and Precision
Revolutionary 7-axis system with unmatched freedom for complex geometries
Non-Planar Printing
Z-Axis Strength Solved
Hybrid Technology Compatibility
Modular Ecosystem
The Omni 7X offers unique benefits to industrial manufactureres
Freedom of Complex Geometries
The 7-axis robotic arm with 2-axis positioner enables non-planar printing of parts that are impossible to achieve with conventional 3-axis FFF systems.
Z-Axis Weakness Eliminated
In-Line Resin Infusion technology strengthens Z-axis performance to 82.4% of XY-axis strength, unlocking true isotropic-class results in FFF printing.
Built for Demanding Industries
Proven in defense, aerospace, and space applications, the Omni 7X meets MIL-SPEC durability standards with ±80µm positioning accuracy and synchronized motion control.
Integrated Post-Processing
Swappable modules for in-line milling, heating, and UV curing allow the system to deliver near-finished parts directly from the print cycle.
COMPARISON TABLE
Have questions? Get in touch with our sales team now!
Materials
At Omni3D, we believe in the power of choice. Our open material systems allow you to explore a vast array of materials, tailored to your specific needs. From engineering-grade thermoplastics to specialty filaments, our printers are designed to handle it all.
Omni 7x compatible materials include:
ABS
Automotive part
ABS EN45545
Locomotive head light
ASA-39
Car air dryer handles
GF-PA12
Intake duct
CF-PA-12 + ODS20
Gear mount

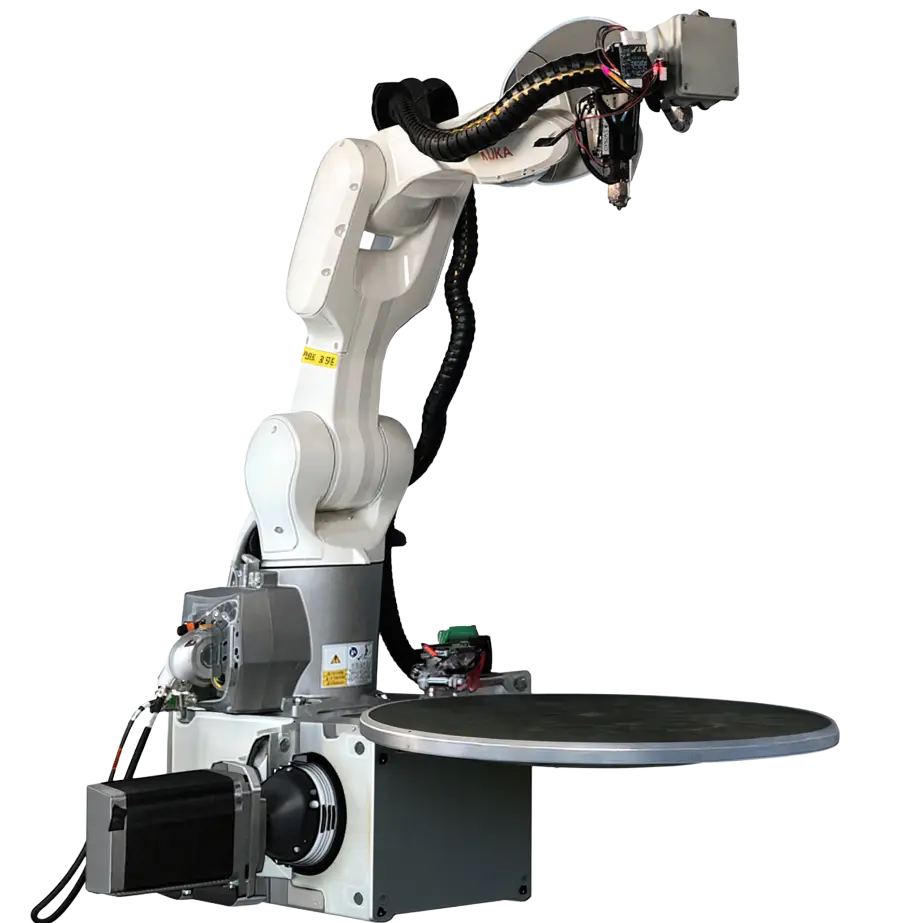

Omni 7x Specifications
| Build volume XYZ | Ø50 cm × 50 cm |
| Printing technology | FDM (FFF) |
| Machine kinematics | 6-axis robotic arm + 2-axis positioner |
| Max. head temperature | 500°C |
| Max. platform temperature | 100°C |
| Nozzle diameter | 0.6 / 0.8 / 1.0 mm |
| Minimum layer height | 0.1 mm |
| Max. printing speed | 50 mm/s |
| Filament diameter | 1.75 mm |
| Build surface | Spring steel with PEI coating |
| User interface | Dedicated computer software |
| Supported file formats | .gcode, .stl, .obj, .3mf |
| Compatible materials | PLA, PET-G, PCTG, TPU |
| Dimensional accuracy | 0.1 mm positioning repeatability |
| Power supply | 230 V / 50 Hz |
| Power consumption | 3,600 W |
| Required power protection | 16 A circuit breaker, type C |
| Printer dimensions | 183 × 144 × 194 cm |
| Printer weight | 650 kg |
| Safety certification | CE |
| Warranty | 12 months |
| Brochure | Download |
